UN1T2GC Nidec 1 hp 1800 RPM 56C (Rigid Base) 575V TENV Vector-Duty 3-Phase Motor
UN1T2GC Nidec 1 hp 1800 RPM 56C (Rigid Base) 575V TENV Vector-Duty 3-Phase Motor
UN1T2GC Nidec 1 hp 1800 RPM 56C (Rigid Base) 575V TENV Vector-Duty 3-Phase Motor
UN1T2GC Nidec 1 hp 1800 RPM 56C (Rigid Base) 575V TENV Vector-Duty 3-Phase Motor

Nidec

UN1T2GC Nidec 1 hp 1800 RPM 56C (Rigid Base) 575V TENV Vector-Duty 3-Phase Motor

(No reviews) Write a Review
$596.85
$533.03
SKU UN1T2GC
Availability Subject to Availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 1.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 1.3 amps 575 Volts 60 Hz Three Phase Motor

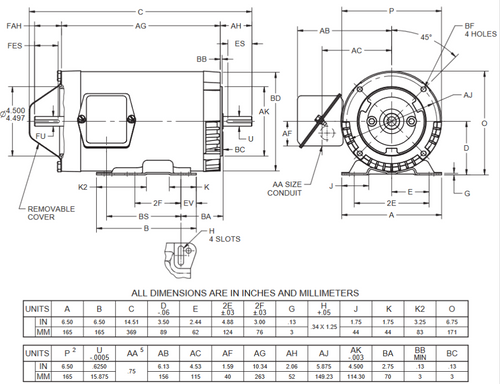

  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. FD92

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 1.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
