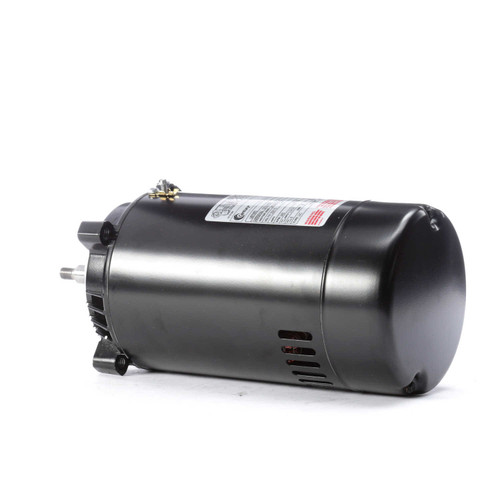

UST1072 Century 3/4 HP 3450 RPM 56J 115/230V Swimming Pool Pump Motor

UST1072 Century 3/4 HP 3450 RPM 56J 115/230V Swimming Pool Pump Motor

This single-speed, standard efficiency motor is designed for swimming pool pump applications, commonly replacing motors on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It features a 56J frame and is suitable for pumps requiring a standard 1081 pump duty motor.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 3450
• Voltage: 115/230V
• Amperage: 11.0/5.5 amps
• Frame / Diameter: 56-J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor includes automatic overload protection with a service factor of 1.0 and features a C-face mount with a round body and no base. It has four threaded bolt holes on the face for pump mounting, spaced 5 7/8" on center across the shaft. Wiring diagrams are provided on the motor nameplate for easy installation. This motor is an ideal replacement for AO Smith/Century models C48J2N131 series and the US Electric equivalent EUST1072.
