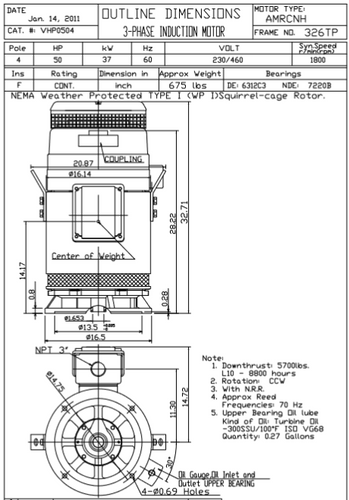

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 50 hp 1800 RPM, 116/58.3 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 326TP Frame, 1 5/8" Dia. Inner Dimension For Hollow and Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
- Service Factor: 1.15, Thermal Overload Protection: None
- CCW Rotation Viewed From Top, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Vertical hollow shaft pump motor with "P" base and Weather Protected Type I (WPI) Enclosre. For use in irrigation and deep well systems
