Waterway | Genesis Generation Energy Efficient Bath Pump 5.5 amps 115V With Air Switch

Waterway | Genesis Generation Energy Efficient Bath Pump 5.5 amps 115V With Air Switch

The Waterway Genesis Generation Energy Efficient Bath Pump is designed for use in whirlpool, Jacuzzi, and garden tubs, providing reliable water circulation with energy efficiency. This pump replaces the Waterway Model 321FF10-1150 and operates at a single speed suitable for most residential bath applications.

Key Specifications

• RPM: 3450
• Voltage: 115V
• Amperage: 5.5 amps

Product Features & Fitment

This pump includes a 3-foot NEMA 3-prong power cord with an integrated air switch for convenient control. It comes with two 1.5" unions compatible with 1.5" Schedule 40 PVC supply lines, which slide into the pump unions rather than the threaded inlet/outlet. Note that unions are brand-specific; installation typically requires removing old unions and attaching the new ones supplied with the pump. The pump features a self-draining design and includes three anti-vibration pads to reduce noise and vibration during operation. Additionally, the pump face has two factory-plugged outlets for small lines that can be drilled out if needed.

Cross Reference

• Waterway Model 321FF10-1150

Warranty

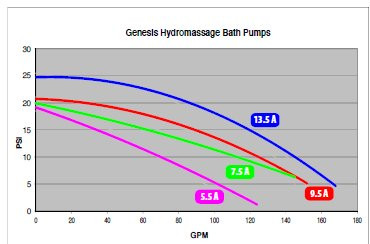

• Dimensions/Flow Chart
