WD1C1JC Nidec 1 hp 3600 RPM 56C White (Rigid Base) 115/208-230V TEFC 1-Phase Washdown Motor
(No reviews)
Write a Review
Write a Review
Nidec
WD1C1JC Nidec 1 hp 3600 RPM 56C White (Rigid Base) 115/208-230V TEFC 1-Phase Washdown Motor
$486.45
$434.47
SKU
WD1C1JC
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
115/208/230V
Horsepower
1 HP
RPM
3600
Phase
Single Phase
Enclosure
TEFC
Hertz
60 Hz
Amperage
6.8 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
WD1C1JC Nidec 1 hp 3600 RPM 56C White (Rigid Base) 115/208-230V TEFC 1-Phase Washdown Motor
This Nidec 1 horsepower, 3600 RPM single-phase motor is designed for washdown applications in food and pharmaceutical environments. It serves as a reliable replacement motor featuring a white epoxy-coated enclosure for enhanced corrosion resistance.
Key Specifications
- Horsepower: 1 hp
- RPM: 3600
- Voltage: 115/208-230 V
- Amperage: 13.6/6.9-6.8 A
- Enclosure: Totally Enclosed Fan-Cooled (TEFC)
- Frame / Diameter: NEMA 56C Rolled Steel Frame
- Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base (56C frame) with a keyed shaft for secure coupling. It includes a C-face mount for versatile installation options. The white epoxy coating provides excellent protection against washdown environments common in sanitary applications. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 115/208/230V |
| Horsepower | 1 HP |
| RPM | 3600 |
| Phase | Single Phase |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 6.8 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added
T1C1JC Nidec 1 hp 3600 RPM 56C (Rigid Base) 115/208-230V TEFC 1-Phase Motor
1 hp 3600 RPM, 13.6/6.9-6.8 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor
NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
Service Factor: 1.15 Overload protection =...
$553.15
$493.47
sale
Add to Cart
The item has been added
T1CA1JCR Nidec 1 hp 3600 RPM 56C (No Base) 115/208-230V TEFC 1-Phase Motor
1 hp 3600 RPM, 13.6/6.9-6.8 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor
NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
Service Factor: 1.15 Overload protection =...
$592.25
$528.77
sale
Add to Cart
The item has been added
WD12C1JC Nidec 1/2 hp 3600 RPM 56C White (Rigid Base) 115/208-230V TENV 1-Phase Washdown Motor
1/2 hp 3600 RPM, 7.3/3.9-3.7 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor
NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
Service Factor: 1.15 Overload protection...
$437.00
$389.74
sale
Add to Cart
The item has been added

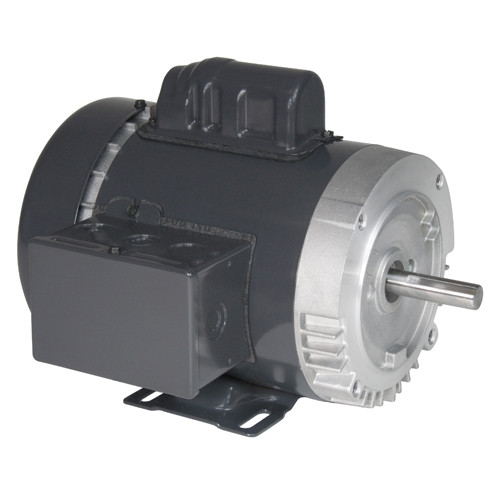

T32C1JHC Nidec 1 1/2 hp 3600 RPM 56C (Rigid Base) 115/208-230V TEFC 1-Phase Motor
