- 7 1/2 hp 1800 RPM, 20.0-18.2/9.1 amps 208-230/460 Volts 60 Hz Three Phase Motor

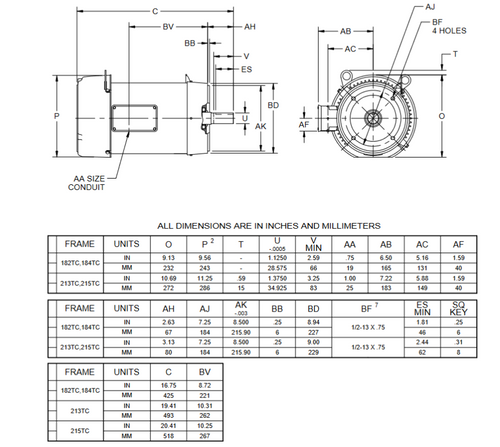

- NEMA 213TC Rolled Steel Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. DD52
