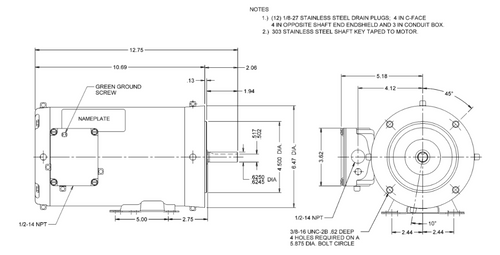

WDP12S2AHC Nidec 1/2 hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WDP12S2AHC Nidec 1/2 hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WDP12S2AHC Nidec 1/2 hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
WDP12S2AHC Nidec 1/2 hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor

Nidec

WDP12S2AHC Nidec 1/2 hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor

(No reviews) Write a Review
$646.30
$576.84
SKU WDP12S2AHC
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56HC
Enclosure TENV
Hertz 60 Hz
Amperage 1.9/0.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 2.0-1.9/0.9 amps  208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Paint-Free wash-down motor for food and pharmaceutical applications. All stainless steel except for the side box. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. P063TLC4006015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56HC
Enclosure TENV
Hertz 60 Hz
Amperage 1.9/0.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
