WDS34S2ACR Nidec 3/4 hp 1800 RPM 56C All-Stainless (No Base) 208-230/460V TENV 3-Phase Washdown Motor
WDS34S2ACR Nidec 3/4 hp 1800 RPM 56C All-Stainless (No Base) 208-230/460V TENV 3-Phase Washdown Motor
WDS34S2ACR Nidec 3/4 hp 1800 RPM 56C All-Stainless (No Base) 208-230/460V TENV 3-Phase Washdown Motor
WDS34S2ACR Nidec 3/4 hp 1800 RPM 56C All-Stainless (No Base) 208-230/460V TENV 3-Phase Washdown Motor

Nidec

WDS34S2ACR Nidec 3/4 hp 1800 RPM 56C All-Stainless (No Base) 208-230/460V TENV 3-Phase Washdown Motor

(No reviews) Write a Review
$1,179.90
$1,053.86
SKU WDS34S2ACR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 2.4/1.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 3/4 hp 1800 RPM, 2.4-2.4/1.2 amps 208-230/460 Volts 60 Hz Three Phase Motor

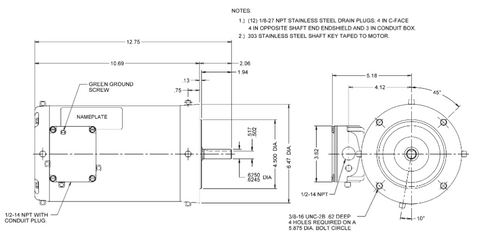

  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

All Stainless Steel wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. BK20

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 2.4/1.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
