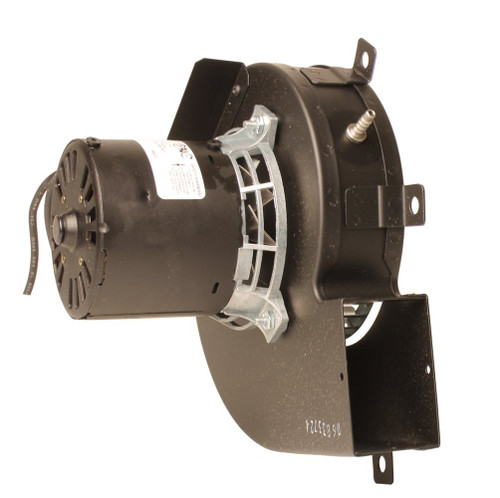

Fasco A080 Williamson Furnace Draft Inducer Blower 115 Volts

Fasco A080 Williamson Furnace Draft Inducer Blower 115 Volts

The Fasco A080 is a replacement furnace draft inducer blower motor designed for use in Williamson furnaces. It serves as a direct substitute for several Williamson and Franklin models, ensuring reliable airflow and proper combustion in HVAC systems.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 3000
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.1 Amps
• Enclosure: Shaded Pole Motor
• Rotation: CWSE (Clockwise Shaft End)
• Bearings: Sleeve Bearings

Product Features & Fitment

This single-speed inducer blower motor delivers a nameplate airflow of 80 CFM. It is compatible with replacement references including Williamson 7021-5510, 25-568, 7021-10263, 02-568, 4MH16, 45KC33, and Franklin F3670-1. The motor’s sleeve bearing design supports smooth operation and ease of installation in furnace draft inducer assemblies.

Cross Reference

• Williamson 7021-5510, 25-568, 7021-10263, 02-568, 4MH16, 45KC33 Franklin F3670-1

Warranty

1 Year Manufacturer Warranty
