X025 Marathon 1/3 hp 1800 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

The X025 Marathon motor is a single-phase, 1/3 horsepower motor designed primarily for belt-driven fans in farm buildings. It features a Totally-Enclosed Air-Over (TEAO) design, requiring installation within an air stream for effective cooling.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230 V, 60 Hz
• Amperage: 4.2/2.1 A
• Enclosure: TEAO (Totally-Enclosed Air-Over)

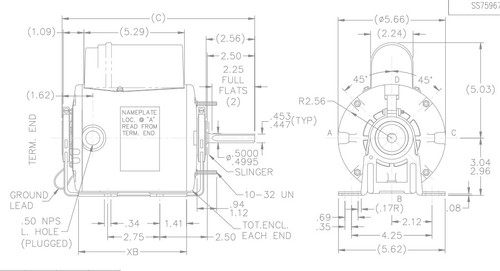

• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1/2" Diameter x 2 1/2" with double flats
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base for stable mounting and features automatic overload protection. Its reversible rotation capability allows for flexible installation options. The motor’s TEAO enclosure requires it to be placed in an air stream to ensure proper cooling during operation.

Warranty

1 Year Manufacturer Warranty
