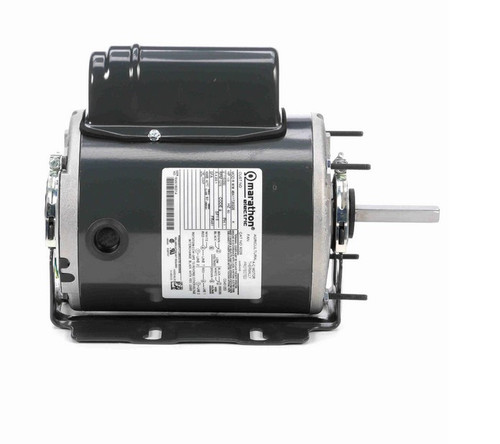

X028 Marathon 1/3 hp 1200 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

X028 Marathon 1/3 hp 1200 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

The X028 Marathon motor is a single-phase, 1/3 horsepower motor designed primarily for belt-driven fans in farm buildings. It replaces standard farm motors requiring a totally-enclosed air-over (TEAO) design for proper cooling in air stream applications.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1200
• Voltage: 115/230 V, 60 Hz
• Amperage: 4.2/2.1 A
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1/2" Diameter x 2 1/2" with double flats
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes automatic overload protection with a service factor of 1.0. The TEAO enclosure requires the motor to be installed in an air stream to ensure proper cooling. Its reversible rotation and ball bearings make it suitable for various farm fan applications.

Warranty

1 Year Manufacturer Warranty
