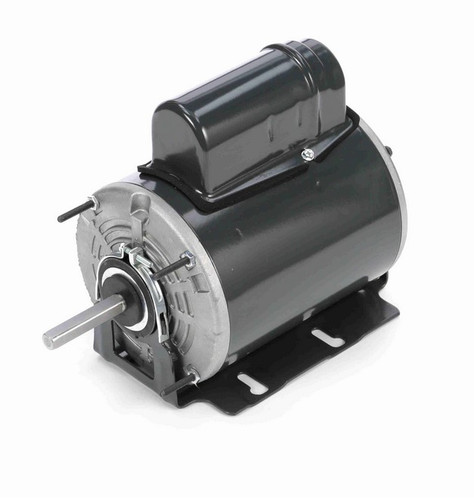

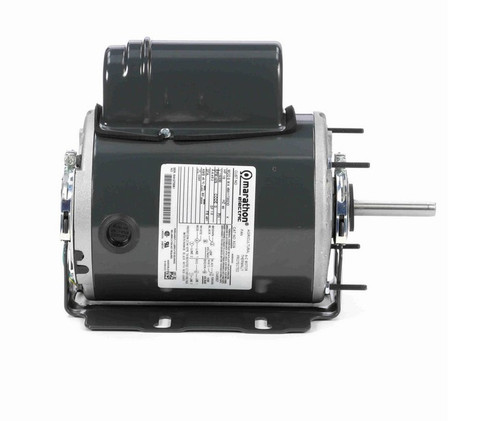

X029 Marathon 1/2 hp 1200 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

X029 Marathon 1/2 hp 1200 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

This single-phase Marathon motor is designed for belt drive fans commonly used in farm buildings. It features a Totally-Enclosed Air-Over (TEAO) design, requiring installation within an air stream for optimal cooling performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1200
• Voltage: 115/230 V
• Amperage: 6.4/3.2 A
• Enclosure: TEAO (Totally-Enclosed Air-Over)
• Frame / Diameter: NEMA 48Z
• Shaft Dimensions: 1/2" diameter x 2 1/2" length with double flats
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a resilient base for stable mounting and features automatic overload protection with a service factor of 1.0. Its reversible rotation capability allows flexible installation options. The TEAO enclosure requires the motor to be mounted in an airflow path to ensure proper cooling during operation.

Warranty

1 Year Manufacturer Warranty
