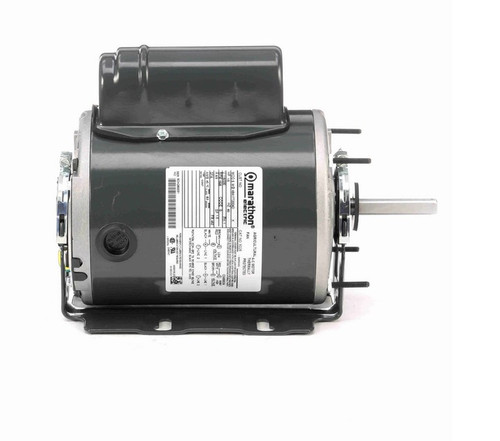

X026 Marathon 1/2 hp 1800 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

X026 Marathon 1/2 hp 1800 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

This Marathon 1/2 horsepower motor is designed for single-phase belt drive fans commonly used in farm buildings. It features a totally-enclosed air-over (TEAO) design, requiring installation within an air stream for optimal cooling performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/230 V, 60 Hz
• Amperage: 6.0/3.0 A
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Z
• Shaft Dimensions: 1/2" diameter x 2 1/2" length with double flats
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a resilient base for stable mounting and features automatic overload protection. Its service factor is rated at 1.0, ensuring reliable operation under typical load conditions. This motor is suitable for applications requiring reversible rotation and is optimized for use in environments where air flow cools the motor housing.

Warranty

1 Year Manufacturer Warranty
