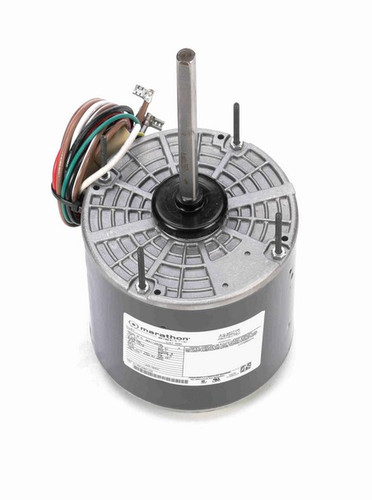

X085 Marathon 3/4 hp 208-230V 1075 RPM OPAO 48Y Frame Condenser Fan Motor

X085 Marathon 3/4 hp 208-230V 1075 RPM OPAO 48Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with a 3/4 horsepower rating, suitable for applications requiring a 1075 RPM speed and 208-230V power supply.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 5.1 amps
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and Class B insulation. It does not include a base and is intended to be mounted in an air stream due to its open-air-over enclosure. The shaft orientation can be vertical or horizontal, providing flexible installation options.

Warranty

1 Year Manufacturer Warranty
