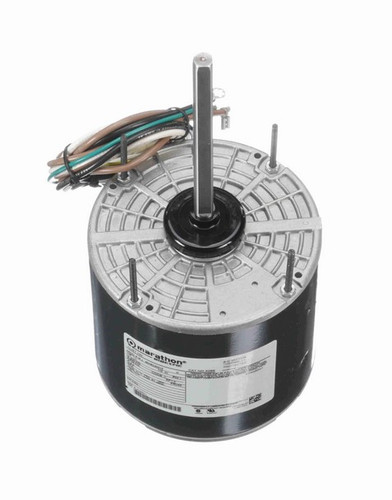

X086 Marathon 1/3 hp 208-230V 825 RPM OPAO 48Z Frame Condenser Fan Motor

X086 Marathon 1/3 hp 208-230V 825 RPM OPAO 48Z Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning condenser units, typically installed outdoors. It replaces standard 1/3 hp motors and is suitable for applications requiring a reliable, open-air-over (OPAO) motor with a keyed shaft.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 825
• Voltage: 208-230 V
• Amperage: 2.4 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Z

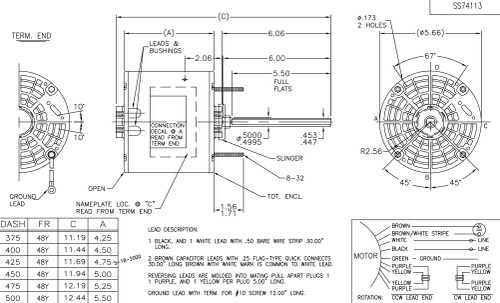

• Shaft Dimensions: 1/2" diameter x 6" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a permanent split capacitor (PSC) design with automatic thermal protection and a service factor of 1.0. It does not include a base and requires installation in an air stream due to its open-air-over enclosure. The motor’s reversible rotation and ball bearings ensure versatile and durable operation in HVAC condenser fan applications.

Warranty

1 Year Manufacturer Warranty
