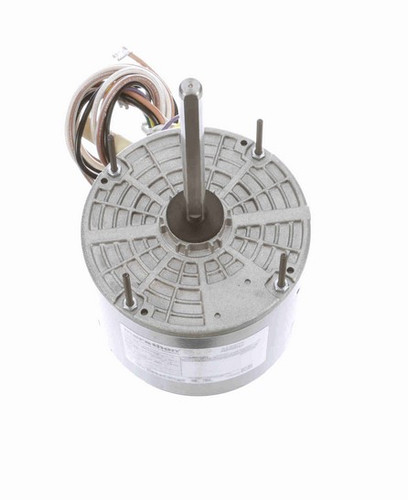

X221 Marathon 1/2 hp 208-230V 1075 RPM OPAO 48Z Frame Condenser Fan Motor

X221 Marathon 1/2 hp 208-230V 1075 RPM OPAO 48Z Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning condenser units, typically installed outdoors. It serves as a reliable replacement motor with a 1/2 horsepower rating and is suitable for applications requiring an open-air-over (OPAO) motor design.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230 V
• Amperage: 2.7-2.8 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame

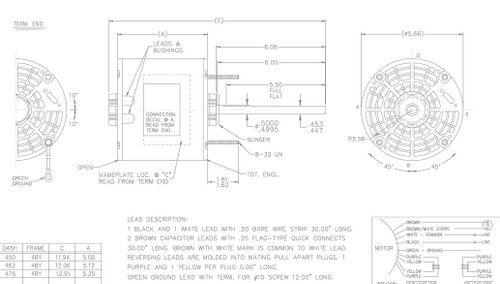

• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a permanent split capacitor (PSC) design with automatic thermal protection and a service factor of 1.0. It comes without a base and requires installation in an air stream due to its open-air-over enclosure. The keyed shaft ensures secure mounting of fan blades, and the reversible rotation allows flexible installation options.

Warranty

1 Year Manufacturer Warranty
