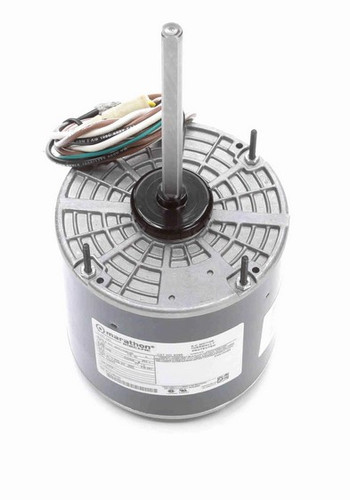

X099 Marathon 3/4 hp 460V 1075 RPM OPAO 48Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in outdoor air conditioning coolant condenser units. It serves as a reliable replacement motor with a 3/4 horsepower rating, suitable for applications requiring a 1075 RPM speed and 460V power supply.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 460 V
• Amperage: 2.5 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and Class B insulation. It comes without a base and requires installation in an air stream due to its Open-Air-Over enclosure type. The shaft orientation can be vertical or horizontal, making it versatile for various condenser fan applications.

Warranty

1 Year Manufacturer Warranty
