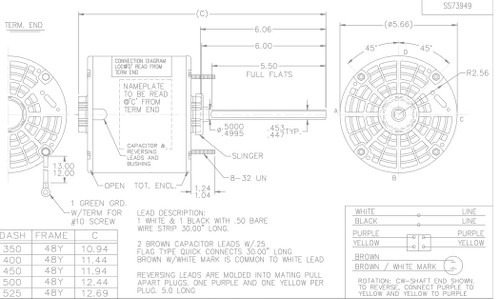

X420 Marathon 1/4 hp 460V 1625 RPM OPAO 48Y Frame Condenser Fan Motor

X420 Marathon 1/4 hp 460V 1625 RPM OPAO 48Y Frame Condenser Fan Motor

The X420 Marathon condenser fan motor is designed for use in outdoor air conditioning condenser units. It serves as a reliable replacement motor with a permanent split capacitor (PSC) design, suitable for applications requiring a 1/4 horsepower motor operating at 460 volts and 1625 RPM.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1625
• Voltage: 460 V, 60 Hz
• Amperage: 1.0 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a keyed shaft for secure mounting and is designed without a base, allowing flexible installation in various condenser fan assemblies. It includes automatic thermal protection and Class B insulation for enhanced durability. The OPAO enclosure requires the motor to be mounted in an air stream to ensure proper cooling during operation.

Warranty

1 Year Manufacturer Warranty
