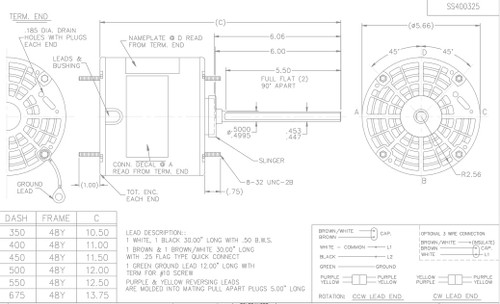

X462 Marathon 1 hp 460V 1075 RPM TENV 48Y Frame Condenser Fan Motor

X462 Marathon 1 hp 460V 1075 RPM TENV 48Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in outdoor air conditioning coolant condenser units. It serves as a reliable replacement motor with a Totally-Enclosed Non-Ventilated (TENV) design, suitable for both vertical and horizontal shaft orientations.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 460 V
• Amperage: 3.4 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design and requires a 25 MFD/370 VAC capacitor for operation. It includes automatic thermal protection and has a service factor of 1.0. The motor is supplied without a base and is engineered for easy integration into existing condenser fan assemblies.

Warranty

1 Year Manufacturer Warranty
