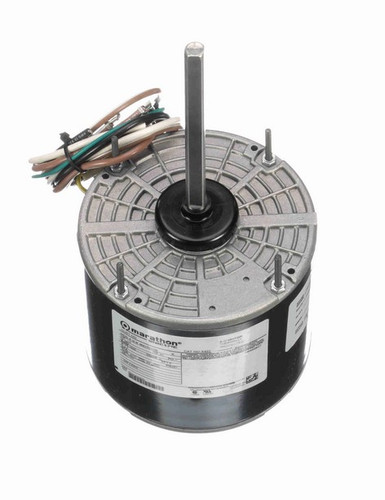

X422 Marathon 1/2 hp 460V 1625 RPM OPAO 48Y Frame Condenser Fan Motor

X422 Marathon 1/2 hp 460V 1625 RPM OPAO 48Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with a 1/2 horsepower rating, suitable for applications requiring a 460V power supply and 1625 RPM speed.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1625
• Voltage: 460 V
• Amperage: 1.7 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with Class B insulation and automatic thermal protection for enhanced durability. It is supplied without a base and requires installation in an air stream due to its Open-Air-Over enclosure type. The keyed shaft ensures secure mounting of fan blades or other components.

Warranty

1 Year Manufacturer Warranty
