X10P2BCR Nidec 10 hp 1800 RPM 215TC Frame 60 Hz 230/460V TEFC 3-Phase Hazardous Duty Motor

X10P2BCR Nidec 10 hp 1800 RPM 215TC Frame 60 Hz 230/460V TEFC 3-Phase Hazardous Duty Motor

SKU:
X10P2BCR
Weight:
190.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,501.00
Now: $1,340.40
Adding to cart… The item has been added
  • 10 hp 1800 RPM, 23.9/12.0 amps 230/460 Volts 60 Hz Three Phase Motor

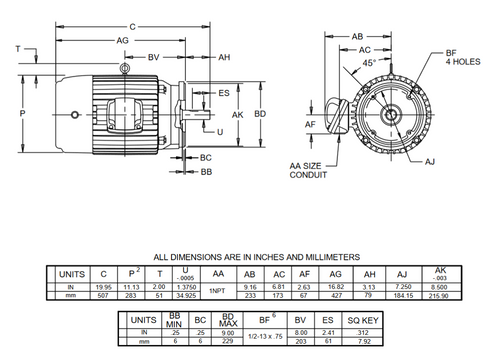

  • NEMA 215TC Cast Iron Frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.0, Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group D, class 2 group FG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FN56

!
