X213 Marathon 1/4 hp 208-230V 1075 RPM OPAO 48Z Frame Condenser Fan Motor

X213 Marathon 1/4 hp 208-230V 1075 RPM OPAO 48Z Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with a permanent split capacitor (PSC) design, suitable for applications requiring a 1/4 horsepower motor with a 1075 RPM speed.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230 V
• Amperage: 1.4-1.2 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 48Z Frame

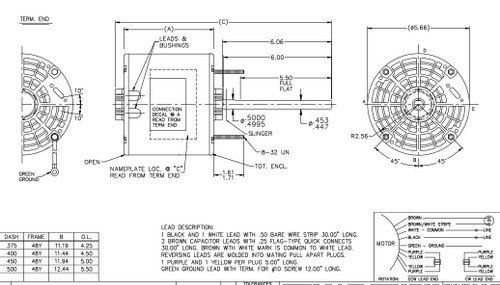

• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a service factor of 1.0 and automatic thermal protection to enhance durability and safety. It comes without a base and requires installation in an air stream due to its open-air-over enclosure design. Class B insulation ensures reliable operation under typical HVAC conditions.

Warranty

1 Year Manufacturer Warranty
