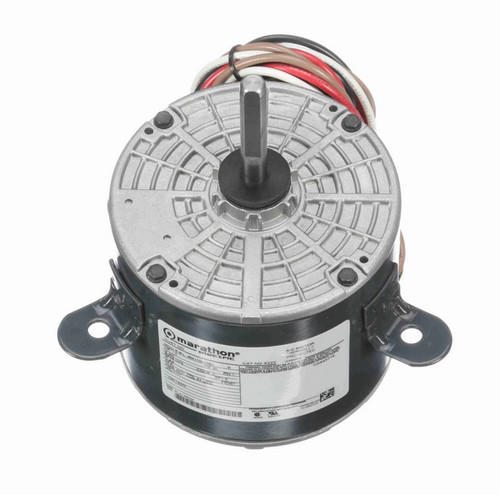

X222 Marathon 1/3 hp (2 speed) 230V 1075/825 RPM OPAO 48Y Frame PSC Lug Mount Motor

X222 Marathon 1/3 hp (2 speed) 230V 1075/825 RPM OPAO 48Y Frame PSC Lug Mount Motor

This Marathon 1/3 hp blower motor operates at two speeds (1075/825 RPM) and is designed for air circulation applications in HVAC systems. It replaces Century models 536 and OCB1036, making it a reliable choice for equipment requiring a NEMA 48Y frame motor.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075 / 825 (2 speed)
• Voltage: 230 V, 60 Hz
• Amperage: 2.6 A
• Enclosure: Open Air-Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 3" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This lug mount motor features a resilient base for stable installation and is equipped with automatic thermal protection. It is designed to be mounted in a cooling air stream due to its Open Air-Over enclosure. The shaft orientation can be vertical or horizontal, providing versatile installation options.

Cross Reference

• Century 536 and OCB1036

Warranty

1 Year Manufacturer Warranty
