X25P3B Nidec 25 hp 1200 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X25P3B Nidec 25 hp 1200 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X25P3B Nidec 25 hp 1200 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X25P3B Nidec 25 hp 1200 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

Nidec

X25P3B Nidec 25 hp 1200 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

(No reviews) Write a Review
$5,866.15
$5,237.22
SKU X25P3B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1200
Phase Three Phase
Frame 324T
Enclosure TEFC
Hertz 60 Hz
Amperage 61.0/31.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 25 hp 1200 RPM, 61.0/31.0 amps 230/460 Volts 60 Hz Three Phase Motor

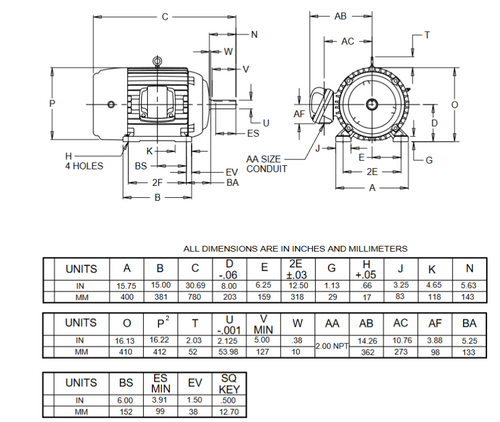

  • NEMA 324T Cast Iron frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.0, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group CD and class 2 group FG.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. DN75

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1200
Phase Three Phase
Frame 324T
Enclosure TEFC
Hertz 60 Hz
Amperage 61.0/31.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
