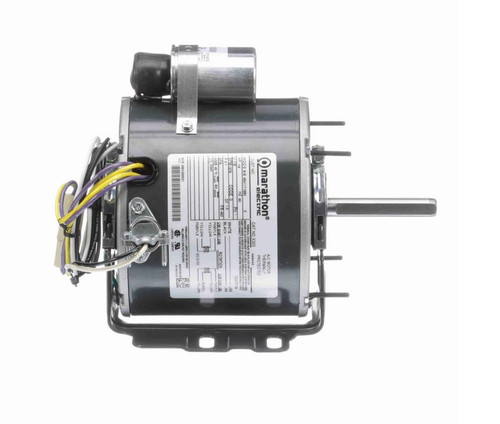

X303 Marathon 1/4 hp (1 speed) 115V 1200 RPM TEAO 48Z Frame PSC Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
X303 Marathon 1/4 hp (1 speed) 115V 1200 RPM TEAO 48Z Frame PSC Resilient Base Motor
$298.66
$259.10
SKU
MX303
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/4 HP
RPM
1200
Frame
48Z
Enclosure
TEAO
Hertz
60 Hz
Amperage
4.1 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
- 1/4 hp 1200 RPM, 4.1 amps, 115 Volts 60 Hz,Split Phase
- NEMA 48Z Frame Flat Shaft 2 7/8" x 1/2" Diameter, 1 speed
- Service Factor = 1.0, Thermal Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. TEAO = Totally Enclosed Air-Over so motor must be in cooling air stream. 048A11T198
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/4 HP |
| RPM | 1200 |
| Frame | 48Z |
| Enclosure | TEAO |
| Hertz | 60 Hz |
| Amperage | 4.1 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
