X305 Marathon 1/6 hp (1 speed) 115V 1800 RPM TEAO 48Z Frame PSC Resilient Base Motor

X305 Marathon 1/6 hp (1 speed) 115V 1800 RPM TEAO 48Z Frame PSC Resilient Base Motor

The X305 Marathon motor is a 1/6 horsepower, single-speed blower motor designed for HVAC applications requiring reliable air movement. It is ideal for replacing motors in systems that utilize a totally enclosed air-over (TEAO) design to ensure proper cooling.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1800
• Voltage: 115 V, 60 Hz
• Amperage: 2.2 A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Z Frame

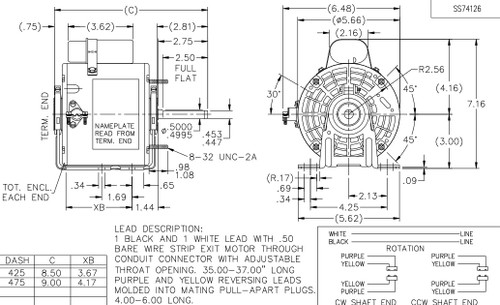

• Shaft Dimensions: 2 7/8" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for use in blower applications where the shaft orientation can be either vertical or horizontal. It includes thermal protection with automatic reset and Class B insulation for durability. The TEAO enclosure requires the motor to be installed within a cooling airstream to maintain optimal operating temperature.

Warranty

1 Year Manufacturer Warranty
