X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor
X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor

Marathon

X448 Marathon 1 hp 200-230/460V 1075 RPM OPAO 56Y Frame Canopy Condenser Fan Motor

(No reviews) Write a Review
$544.41
$477.02
SKU X448
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/230/460V
Horsepower 1 HP
RPM 1075
Frame 56Y
Hertz 60 Hz
Amperage 5.2/2.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1 hp 1075 RPM, 6.0-5.2/2.6 amps, 200-230/460 Volts 60 Hz, Permanent Split Capacitor (PSC)

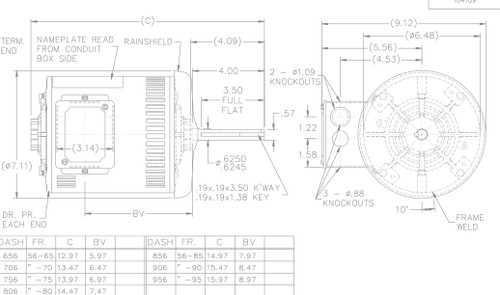

  • NEMA 56Y Frame Keyed Shaft 5/8" Diameter x 4"
  • Service Factor = 1.0, Thermal Protection = Automatic
  • No Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air Over so motor must be in air-stream. 056A11O5314

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/230/460V
Horsepower 1 HP
RPM 1075
Frame 56Y
Hertz 60 Hz
Amperage 5.2/2.6 Amps
Bearings Ball Bearings
Insulation Class Class B
!
