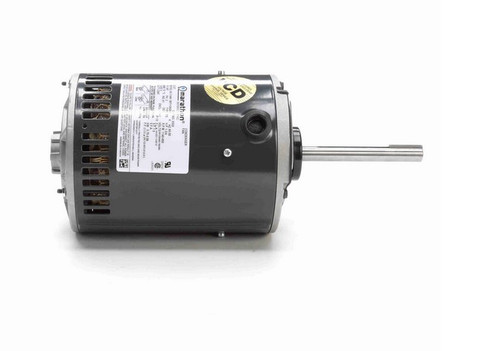

X502 Marathon 1 hp 3-phase 200-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

X502 Marathon 1 hp 3-phase 200-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

The X502 condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It replaces standard condenser fan motors and is suitable for applications requiring a reliable, three-phase motor with an open air-over enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 200-230/460 V, 60 Hz
• Amperage: 4.0-4.2/2.1 A
• Enclosure: Open Air-Over (OPAO)

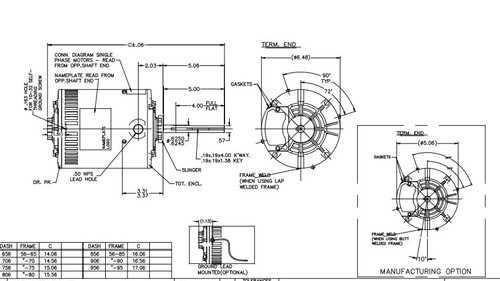

• Frame / Diameter: NEMA 56Y Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a NEMA 56Y frame with a keyed shaft designed for secure coupling. It includes automatic thermal protection and Class H insulation for enhanced durability. The motor is supplied without a base and must be mounted in an air stream due to its open air-over design. Its reversible rotation allows for flexible installation in various condenser fan configurations.

This motor was formerly branded as Marathon but has now been transitioned to the Leeson brand.

Warranty

1 Year Manufacturer Warranty
