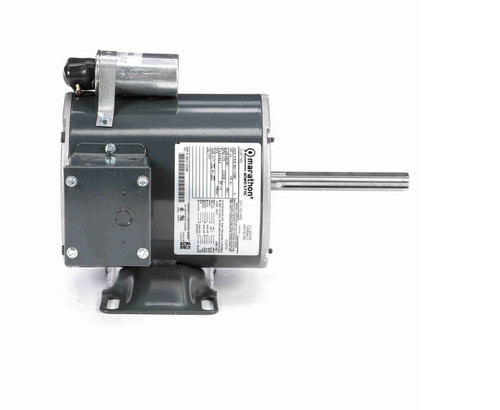

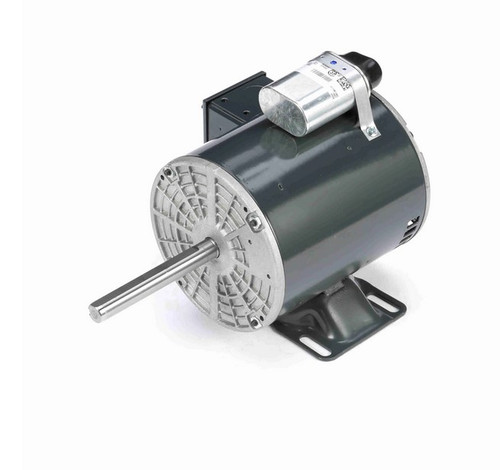

X432 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

X432 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with an open-air-over (OPAO) enclosure, requiring installation within an air stream for optimal cooling.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 4.6-4.4/2.2 A
• Enclosure: Open-Air-Over (OPAO)
• Frame / Diameter: NEMA 56Y Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 4 1/2" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a permanent split capacitor (PSC) design with automatic thermal protection and a service factor of 1.0. It does not include a base and is equipped with Class B insulation. The motor shaft can be mounted vertically or horizontally to accommodate various condenser fan configurations.

Warranty

1 Year Manufacturer Warranty
