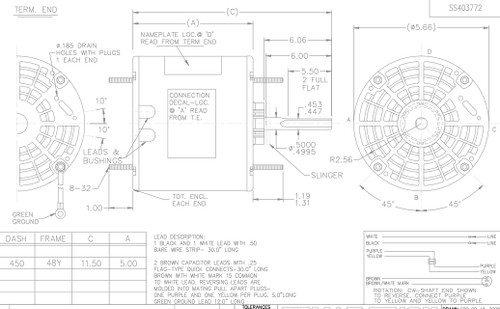

X466 Marathon 1/3 hp 208-230V 1625 RPM TEAO 48Y Frame Condenser Fan Motor

X466 Marathon 1/3 hp 208-230V 1625 RPM TEAO 48Y Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with a Totally-Enclosed Air-Over (TEAO) design, requiring installation within an air stream.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1625
• Voltage: 208-230V
• Amperage: 2.0 amps
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and a service factor of 1.0. It does not include a base and is suitable for both vertical and horizontal shaft orientations. The motor is built with Class B insulation for durability in HVAC applications.

Warranty

1 Year Manufacturer Warranty
