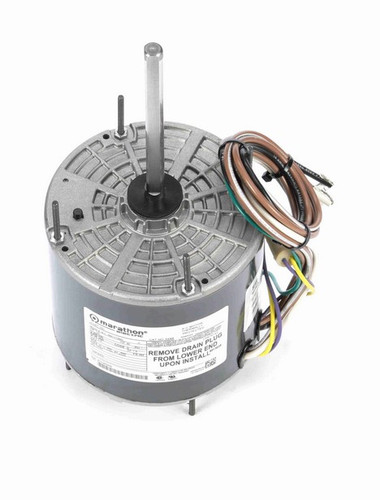

X468 Marathon 1/2 hp 208-230V 1625 RPM TEAO 48Z Frame Condenser Fan Motor

X468 Marathon 1/2 hp 208-230V 1625 RPM TEAO 48Z Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in outdoor air conditioning condenser units. It serves as a reliable replacement motor, delivering efficient performance for cooling systems requiring a 1/2 horsepower motor with a Totally-Enclosed Air-Over (TEAO) design.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1625
• Voltage: 208-230 V, 60 Hz
• Amperage: 2.6-2.9 A
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Z Frame

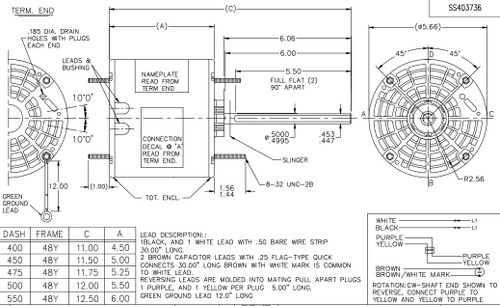

• Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection for enhanced durability. It does not include a base and requires installation within an air stream due to its TEAO enclosure. The motor’s reversible rotation and keyed shaft facilitate versatile mounting options in various condenser fan applications.

Warranty

1 Year Manufacturer Warranty
