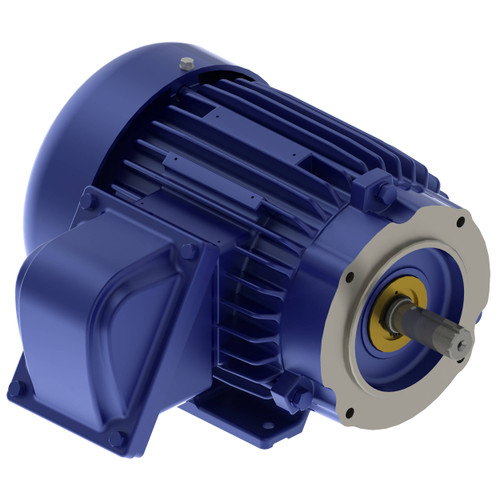

XP1004C TECO-Westinghouse 100 HP 1800 RPM 405TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP1004C TECO-Westinghouse 100 HP 1800 RPM 405TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP1004C TECO-Westinghouse 100 HP 1800 RPM 405TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP1004C TECO-Westinghouse 100 HP 1800 RPM 405TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

TECO WESTINGHOUSE

XP1004C TECO-Westinghouse 100 HP 1800 RPM 405TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

(No reviews) Write a Review
$11,758.73
SKU XP1004C
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Frame 405TC
Enclosure TEFC
Hertz 60 Hz
Amperage 218/109.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

  • 100 hp 1800 RPM, 1-Speed, 218/109.0 amps, 230/460 Volts 60 Hz. Three Phase
  • 405TC Cast Iron Frame, Shaft: 2 7/8" x 7" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof Motor With C-Face and Base For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)

Specifications
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Frame 405TC
Enclosure TEFC
Hertz 60 Hz
Amperage 218/109.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
!
