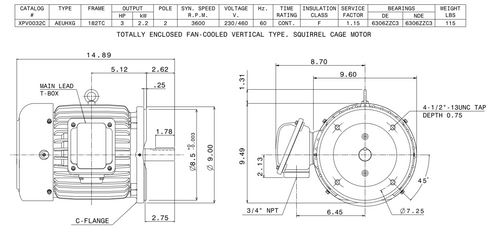

XPV0032C TECO-Westinghouse 3 HP 3600 RPM 182TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

XPV0032C TECO-Westinghouse 3 HP 3600 RPM 182TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

SKU:
XPV0032C
Weight:
150.00 LBS
Width:
17.00 (in)
Height:
13.00 (in)
Depth:
16.00 (in)
Shipping:
Calculated at Checkout
Voltage:
230/460V
Horsepower:
3 HP
RPM:
3600
Phase:
Three Phase
Frame:
182TC
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
7.14/3.57 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Insulation Class:
Class F
Rotation:
Reversible
Mounting:
C-Face
$867.54
Adding to cart… The item has been added

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

  • 3 hp 3600 RPM, 1-Speed, 7.14/3.57 amps, 230/460 Volts 60 Hz. Three Phase
  • 182TC Cast Iron Frame, Shaft: 1 1/8" x 2 5/8" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof C-Face Motor For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)

!
