XS13SA2DCR Nidec 1/3 hp 1800 RPM 56C Frame 50/60 Hz 208-230/460V TEFC 3-Phase Hazardous Duty Motor
XS13SA2DCR Nidec 1/3 hp 1800 RPM 56C Frame 50/60 Hz 208-230/460V TEFC 3-Phase Hazardous Duty Motor
XS13SA2DCR Nidec 1/3 hp 1800 RPM 56C Frame 50/60 Hz 208-230/460V TEFC 3-Phase Hazardous Duty Motor
XS13SA2DCR Nidec 1/3 hp 1800 RPM 56C Frame 50/60 Hz 208-230/460V TEFC 3-Phase Hazardous Duty Motor

Nidec

XS13SA2DCR Nidec 1/3 hp 1800 RPM 56C Frame 50/60 Hz 208-230/460V TEFC 3-Phase Hazardous Duty Motor

(No reviews) Write a Review
$458.85
$409.98
SKU XS13SA2DCR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 50/60 Hz
Amperage 1.3/0.65 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 1.4-1.3/0.65 amps  208-230/460 Volts 50/60 Hz Three Phase Motor

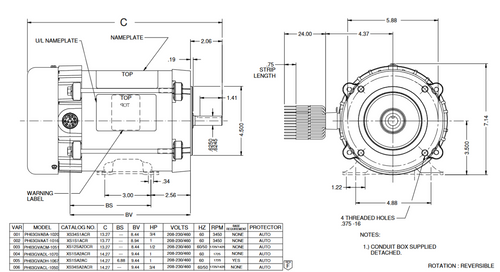

  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = Auto
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group CD, class 2 group EFG.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. PH63AEB1081015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 50/60 Hz
Amperage 1.3/0.65 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting C-Face
!
