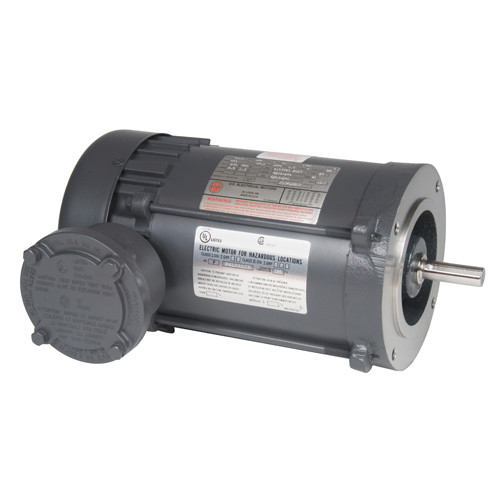

XS1CA1JCR Nidec 1 hp 3600 RPM 56C Frame 60 Hz 115/208-230V TEFC Cap Start Hazardous Duty Motor
XS1CA1JCR Nidec 1 hp 3600 RPM 56C Frame 60 Hz 115/208-230V TEFC Cap Start Hazardous Duty Motor
XS1CA1JCR Nidec 1 hp 3600 RPM 56C Frame 60 Hz 115/208-230V TEFC Cap Start Hazardous Duty Motor
XS1CA1JCR Nidec 1 hp 3600 RPM 56C Frame 60 Hz 115/208-230V TEFC Cap Start Hazardous Duty Motor

Nidec

XS1CA1JCR Nidec 1 hp 3600 RPM 56C Frame 60 Hz 115/208-230V TEFC Cap Start Hazardous Duty Motor

(No reviews) Write a Review
$886.65
$791.20
SKU XS1CA1JCR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1 HP
RPM 3600
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 6.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1 hp 3600 RPM, 12.0/6.3-6.0 amps 115/208-230 Volts 60 Hz Capacitor Start Motor
  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = Auto
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group CD, class 2 group EFG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. CH63AAG1006015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1 HP
RPM 3600
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 6.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting C-Face
!
