XS34CA2J Nidec 3/4 hp 1800 RPM 56 Frame 115/208-230V TEFC Cap Start (Rigid) Hazardous Duty

SKU:
XS34CA2J
Weight:
32.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $619.00
Now: $552.80
Adding to cart… The item has been added
  • 3/4 hp 1800 RPM, 12.6/6.3-6.3 amps 115/208-230 Volts 60 Hz Capacitor Start Motor

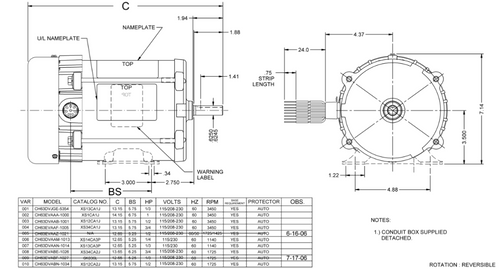

  • NEMA 56 Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = Auto
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group CD, class 2 group EFG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. CH63ABE1026015B
