Z117 Marathon 5 hp 1800 RPM 230V TEFC 213TZ Frame (Extra Torque Farm Duty) Motor
(No reviews)
Write a Review
Write a Review
Marathon
Z117 Marathon 5 hp 1800 RPM 230V TEFC 213TZ Frame (Extra Torque Farm Duty) Motor
$1,400.59
$1,028.10
SKU
Z117
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230V
Horsepower
5 HP
RPM
1800
Phase
Single Phase
Frame
213TZ
Enclosure
TEFC
Hertz
60 Hz
Amperage
22.6 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Rotation
Reversible
Mounting
Rigid Base
- 5 hp 1800 RPM, 22.6 amps, 230 Volts 60 Hz.Capacitor Start / Capacitor Run

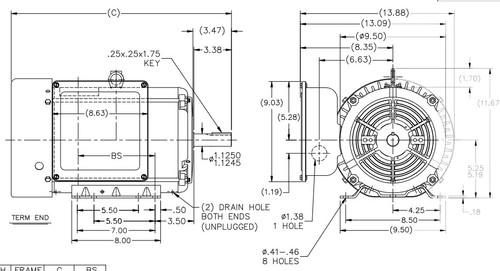

- NEMA 213TZ Frame, TEFC, Keyed Shaft 1 1/8" Diameter x 3 3/8"
- Service Factor = 1.15, Overload Protection: Manual
- Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Marathon single phase farm duty motor. Extra High Starting Torque above that of normal farm duty motors yet with shaft diameter of next smaller frame size, TEFC = Totally-Enclosed Fan-Cooled, 213TBFW7027
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230V |
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 213TZ |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 22.6 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Rotation | Reversible |
| Mounting | Rigid Base |
