N347 Marathon 1 1/2 hp 1800 RPM 1-Phase 56C Frame TEFC (rigid base) 115/230V Marathon Motor

N347 Marathon 1 1/2 hp 1800 RPM 1-Phase 56C Frame TEFC (Rigid Base) 115/230V Marathon Motor

This Marathon electric motor is a single-phase, capacitor start motor designed for industrial and HVAC applications requiring reliable performance. It is suitable for replacing or upgrading existing 1 1/2 hp motors with a 56C frame and TEFC enclosure.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/230V
• Amperage: 15.8/7.9 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

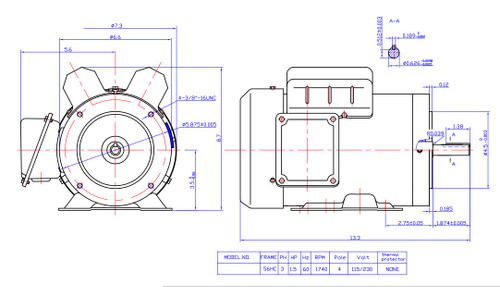

• Frame / Diameter: NEMA 56C frame, C-face
• Shaft Dimensions: Stainless steel keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and includes a stainless steel keyed shaft for durability in wash-down and caustic environments. The C-face mount includes four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
