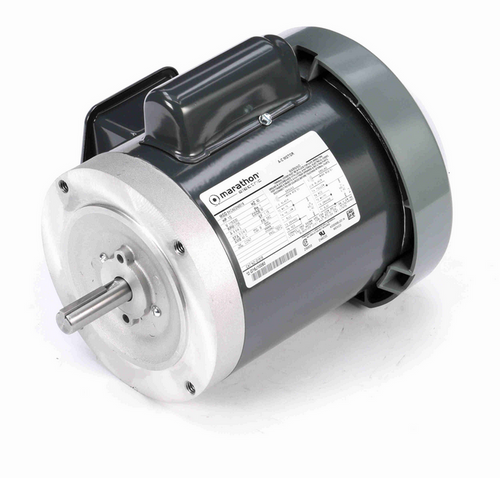

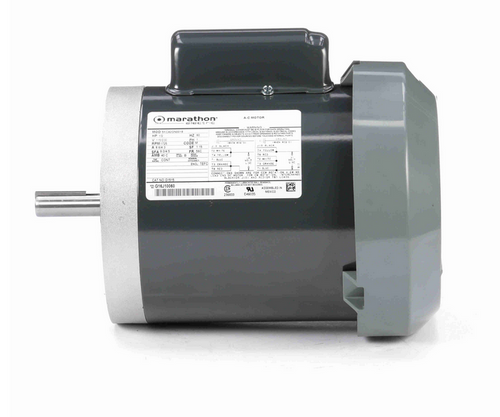

G1515 Marathon 1/2 hp 1800 RPM 56C Frame TEFC (no base) 115/230V Marathon Motor

SKU:: G1515
UPC:
Weight:: 21.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 16.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 8.6/4.3 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $504.28

Now: $437.46

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

G1515 Marathon 1/2 hp 1800 RPM 56C Frame TEFC (no base) 115/230V Marathon Motor

This Marathon 1/2 horsepower motor is a general-purpose, single-phase electric motor designed for various industrial and HVAC applications. It features a NEMA 56C C-face mount and is suitable for replacing motors requiring a totally enclosed fan-cooled design.

Key Specifications

Horsepower: 1/2 hp
RPM: 1800
Voltage: 115/230 V
Amperage: 8.6/4.3 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 56C
Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor includes a capacitor start induction run design with a service factor of 1.15 and Class B insulation. It features a C-face with four threaded bolt holes spaced 5 7/8" on center for mounting pumps or gear heads. The motor does not include a base and comes with a wiring diagram on the nameplate for easy installation.
