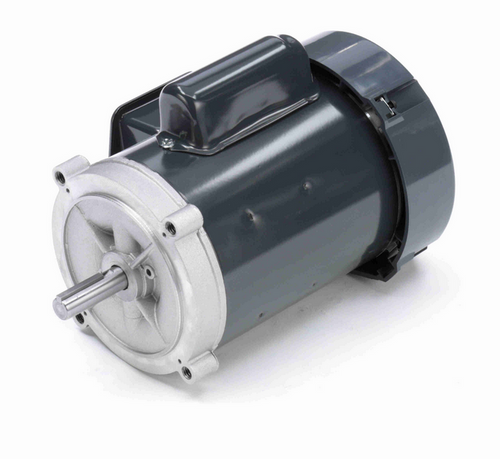

C349 Marathon 1/2 hp 3600 RPM 56C Frame TEFC (no base) 115/230V Marathon Motor

C349 Marathon 1/2 hp 3600 RPM 56C Frame TEFC (no base) 115/230V Marathon Motor

This Marathon 1/2 horsepower single-phase motor is designed for general-purpose applications requiring a C-face mount. It is ideal for replacing or powering pumps, gear heads, and other equipment needing a reliable, capacitor start induction run motor.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 7.4/3.7 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

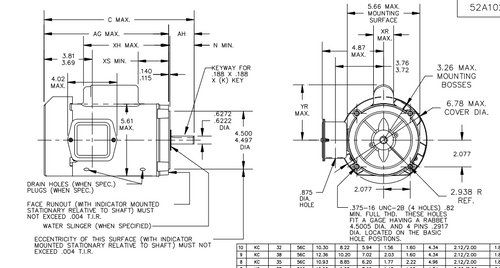

The motor features a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing secure mounting of pumps or gear heads. It includes a capacitor start induction run design with an auto overload protection system. Wiring information is provided on the motor nameplate for straightforward installation. This motor comes without a base and is equipped with Class B insulation for durability.

Warranty

1 Year Manufacturer Warranty
