Marathon

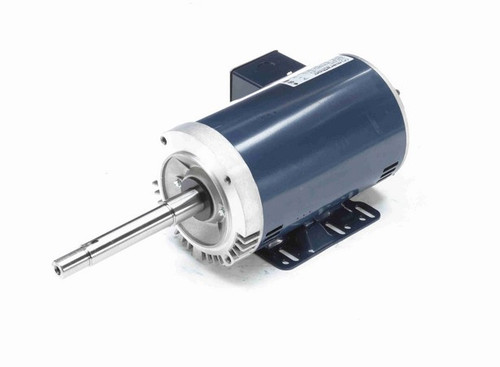

GT2404 Marathon 1 1/2 hp 1800 RPM 145JP Frame 230/460V ODP Marathon Close Coupled Pump Motor
- 1 1/2 hp 1800 RPM 4.4/2.2 amps 230/460 Volts 60hz. 3 phase motor
- NEMA 145JP frame, C-face, Internally threaded JP shaft
- Service Factor = 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball bearings, Class F insulation
- One Year Manufacture Warranty
Designed for continuous duty service on close coupled pumps. Motor has rigid base with JP shaft. ODP = Open Drip Proof, Wiring diagram on motor name plate. 145TTDR16330
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145JP |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.4/2.2 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | C-Face |
| Duty | continuous duty |
