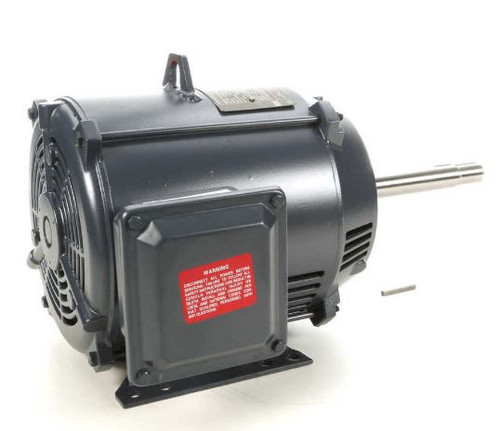

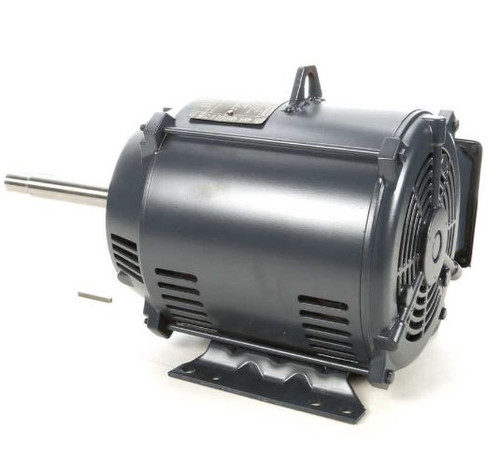

GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor
GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor

Marathon

GT2413A Marathon 5 hp 1800 RPM 182JP Frame ODP 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$906.43
$776.25
SKU GT2413A
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 182JP
Enclosure ODP
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM 182JP Frame, 12.6/6.3 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; Ball Bearings
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

184TTDBD6037 Replaces Leeson Model 199772.00; 199772; B199772.00, B199772; Dayton 32UP97

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 182JP
Enclosure ODP
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
