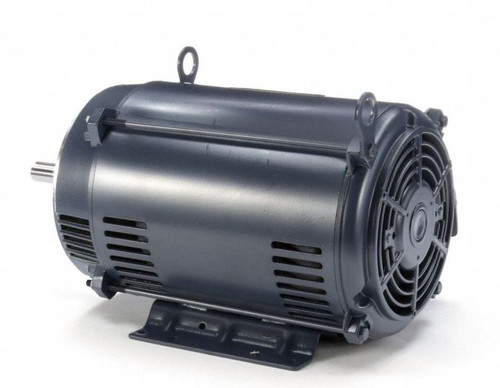

GT0416A Marathon 7.5 hp 1800 RPM 213JM Frame ODP 230/460V Marathon Close Couple Motor

GT0416A Marathon 7.5 hp 1800 RPM 213JM Frame ODP 230/460V Marathon Close Couple Motor

The GT0416A is a Marathon close coupled pump motor designed for continuous duty operation. It replaces Leeson models 199775.00, B199775.00, and Dayton 26ZY04, making it ideal for applications requiring a rigid base close coupled pump motor.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 19.8/9.9 amps
• Enclosure: Open Drip Proof (ODP)

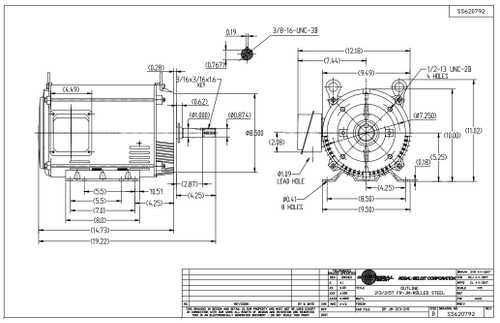

• Frame / Diameter: 213JM
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base and is designed specifically for close coupled pump installations. It includes a wiring diagram on the motor nameplate to assist with proper electrical connections. The motor is built with Class F insulation and a service factor of 1.15 for reliable continuous duty performance.

Cross Reference

• Leeson Model 199775.00; 199775; B199775.00, B199775; Dayton 26ZY04

Warranty

1 Year Manufacturer Warranty
