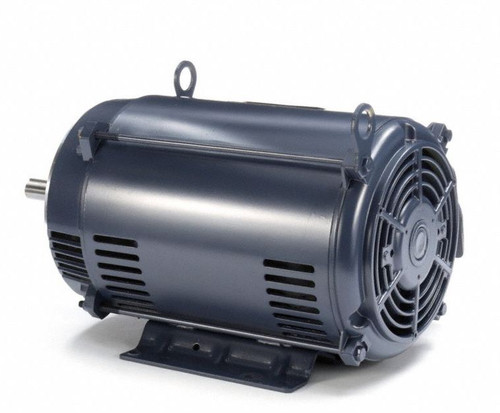

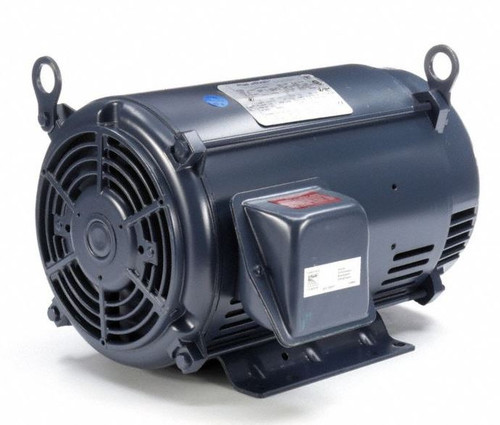

GT0418A Marathon 10 hp 3450 RPM 213JM Frame ODP 230/460V Marathon Close Couple Motor

GT0418A Marathon 10 hp 3450 RPM 213JM Frame ODP 230/460V Marathon Close Couple Motor

The GT0418A is a 10 horsepower, 3450 RPM three-phase motor designed for close-coupled pump applications. It replaces Leeson models 199090.00, 199090, B199090.00, B199090 and Dayton models 29AJ96, 26ZY02, providing reliable continuous duty performance.

Key Specifications

• Horsepower: 10 hp
• RPM: 3450
• Voltage: 230/460V
• Amperage: 24.3/12.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 213JM

Product Features & Fitment

This motor features a rigid base and is designed specifically for close-coupled pump installations. It includes a wiring diagram on the motor nameplate for easy setup. The motor is built with Class F insulation and a service factor of 1.15, suitable for continuous duty operation without overload protection.

Cross Reference

• Leeson Model 199090.00, 199090, B199090.00, B199090; Dayton 29AJ96, 26ZY02

Warranty

1 Year Manufacturer Warranty
