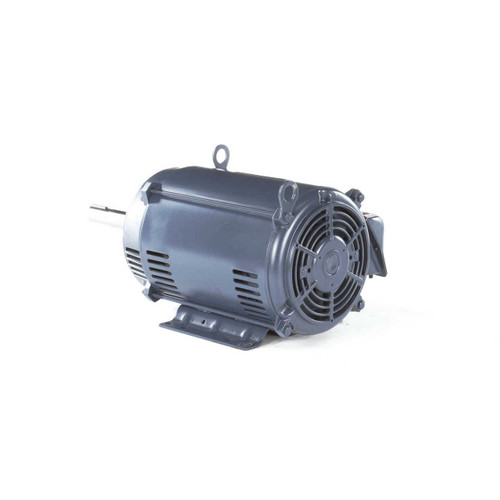

GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor
GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor

Marathon

GT2418A Marathon 10 hp 3450 RPM 213JP Frame ODP 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$1,333.89
$1,159.20
SKU GT2418A
UPC 7.23E+11
Availability LIMITED STOCK
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3450
Phase Three Phase
Frame 213JP
Enclosure ODP
Hertz 60 Hz
Amperage 24.3/12.2 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 10 hp 3450 RPM 213JP Frame, 24.3/12.2 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

213TTDBD6012 Replaces Model 199784.00, 199784, B199784.00, B199784; Dayton 32UP99

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3450
Phase Three Phase
Frame 213JP
Enclosure ODP
Hertz 60 Hz
Amperage 24.3/12.2 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
