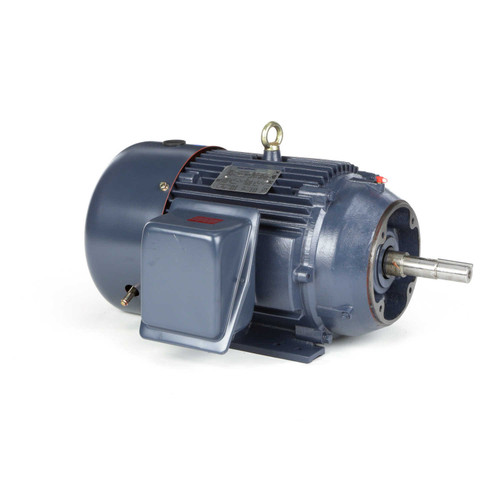

GT3121A Marathon 15 hp 3450 RPM 254JM Frame TEFC 230/460V Marathon Close Couple Motor

GT3121A Marathon 15 hp 3450 RPM 254JM Frame TEFC 230/460V Marathon Close Couple Motor

SKU:
GT3121A
Weight:
295.00 LBS
Width:
36.00 (in)
Height:
30.00 (in)
Depth:
25.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
15 HP
RPM:
3450
Phase:
Three Phase
Frame:
254JM
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
35.5/17.8 Amps
Bearings:
Ball Bearings
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Continuous duty
Was: $2,576.46
Now: $2,189.60
Adding to cart… The item has been added
  • 15 hp 3450 RPM 254JM Frame, 35.5/17.8 amps 230/460V 60hz Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Totally Enclosed Fan cooled (TEFC) - Service Factor = 1.15
  • Class F Insulation; Ball Bearings
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

254TTFCD6006 Replaces Leeson Model 199975.00; 199975; B199975.00, B199975

!
