sale
Marathon

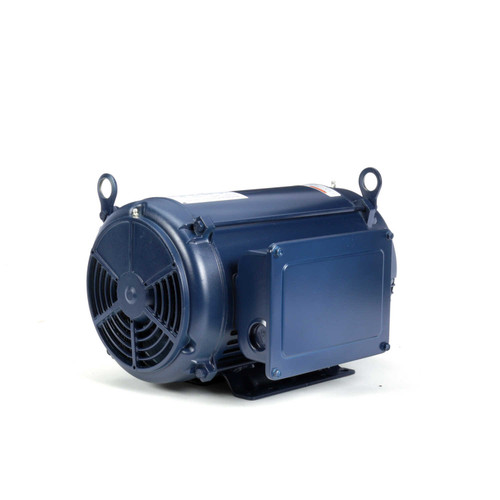

Z409 Marathon 5 hp 1800 RPM 213JM Frame 230V ODP Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
Z409 Marathon 5 hp 1800 RPM 213JM Frame 230V ODP Marathon Close Couple Motor
$1,436.47
$1,230.50
SKU
MZ409
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230V
Horsepower
5 HP
RPM
1800
Phase
Single Phase
Frame
213JM
Enclosure
ODP
Hertz
60 Hz
Amperage
28.0 Amps
Insulation Class
Class F
Mounting
Rigid Base
Duty
continuous duty
- 5 hp 1800 RPM 213JM, 28.0 amps 230 Volts 60hz. single Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Open Drip Proof (ODP) - Service Factor = 1.15
- Class F Insulation; No Overload Protection
- Capacitor Start/Induction Run
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base and NEMA JM pump shaft. Wiring diagram on motor name plate.
213TCDW7027 Replaces Leeson Model C184K17DK14A; 131605.00, 131605; Dayton 26ZY40
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230V |
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 213JM |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 28.0 Amps |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | continuous duty |
