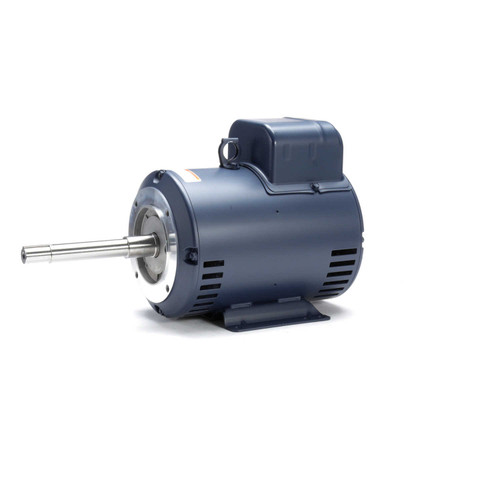

5 hp 3450 RPM 184JP Frame 230V ODP Marathon Close Couple Motor # Z427A

SKU:
Z427A
Weight:
89.00 LBS
Shipping:
Calculated at Checkout
$759.64
  • 5 hp 3450 RPM 184JP Frame, 22.0 amps 230 Volts 60hz. single Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Capacitor Start/Induction Run
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base and NEMA JP pump shaft. Wiring diagram on motor name plate.

184TBDW17011; Replaces Leeson Model C184K34DK6A; 131881.00, 131881
