Z408A Marathon 5 hp 3500 RPM 184JM Frame 208-230V ODP Marathon Close Couple Motor

Z408A Marathon 5 hp 3500 RPM 184JM Frame 208-230V ODP Marathon Close Couple Motor

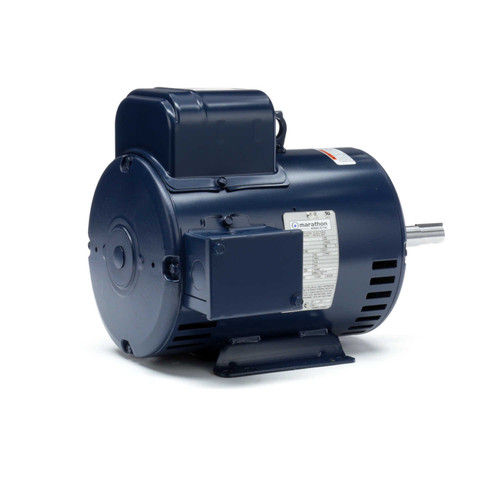

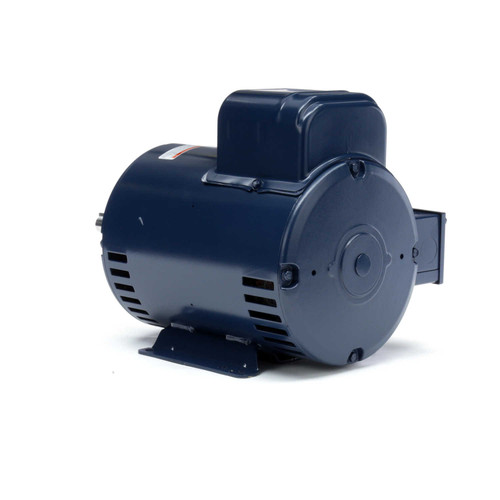

The Z408A is a 5 horsepower, 3450 RPM single-phase motor designed for close coupled pump applications. It replaces Leeson Model C184K34DK3B and features a rigid base with a NEMA JM pump shaft, making it ideal for continuous duty service on close coupled pumps.

Key Specifications

• Horsepower: 5 hp
• RPM: 3450 RPM
• Voltage: 208-230 V
• Amperage: 22.0 A
• Enclosure: Open Drip Proof (ODP)

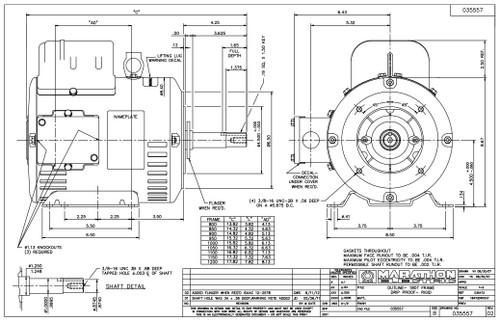

• Frame / Diameter: 184JM
• Phase: Single Phase

Product Features & Fitment

This motor includes a capacitor start and induction run design for reliable operation. It is mounted on a rigid base and features a close coupled configuration for direct pump attachment. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Cross Reference

• Leeson Model C184K34DK3B; 131641.00, 131641

Warranty

1 Year Manufacturer Warranty
