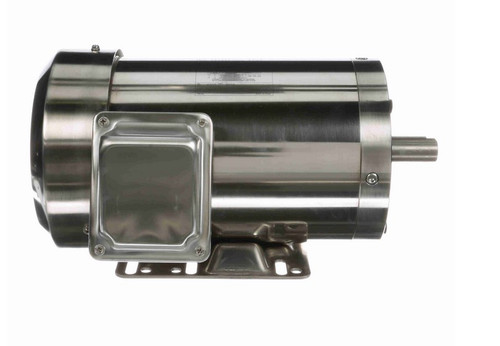

N416A Marathon 1 1/2 hp 1800 RPM 3-Phase 145TC Frame TEFC (rigid base) 230/460V Marathon Motor

N416A Marathon 1 1/2 hp 1800 RPM 3-Phase 145TC Frame TEFC (rigid base) 230/460V Marathon Motor

This Marathon 1 1/2 horsepower motor is designed for industrial applications requiring reliable, three-phase power. It features a rigid base and a totally enclosed fan-cooled (TEFC) design, suitable for replacing similar NEMA 145TC frame motors in demanding environments.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 4.8/4.4 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, stainless steel keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor includes a rigid base for stable mounting and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The stainless steel keyed shaft and Class F insulation make it suitable for wash-down and caustic environments. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
